|Place of Origin:||China|
|Minimum Order Quantity:||1 piece|
|Price:||USD35 ~ USD80 per piece|
|Delivery Time:||20 working days|
|Supply Ability:||Production of 1000pcs per day|
|Cover Glass:||3mm Tempered Glass||Surface Hardness:||6H Or Above|
|Touch Sensor:||0.7mm ITO Glass||Touch Controller:||ILI2510, COB|
|Response Time:||25ms||Application:||Touch Computers|
|Touch Points:||Multi-touch||Structure:||Cover Glass On Sensor Glass|

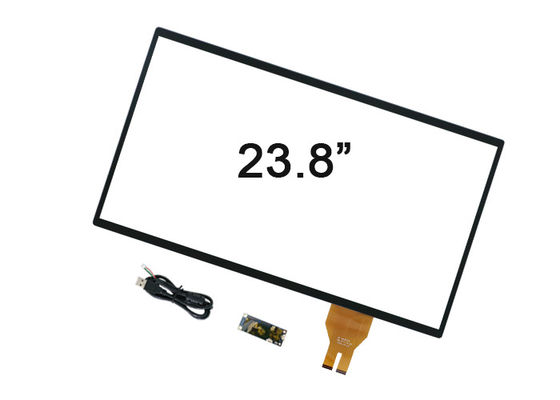

23.8 Inch Touch Panel Screen with ILITEK 2510 Touch Controller and Universal USB Cable
TPS2388426V1 is a cusmtomized projected capacitive touch screen panel for an entertainment computer. The cover glass is designed as per client's enclosure and the firmware is tuned as per client's computer. It supports 10 points finger touch and response fast. Below is the general specifications for your reference.
|Cover Glass Outline Dimension||543 x 323.5 mm|
|Cover Glass Thickness||3mm|
|Touch Screen Viewing Area||527 x 296.73 mm|
|Sensor Glass Thickness||0.7mm|
|Touch Panel Thickness||3.9mm|
|Operating Temperature||-20 ~ 70 degrees celsius|
|Storage Temperature||-30 ~ 80 degrees celsius|
|Interface||ILITEK 2510, USB, COB|
TPS2388426V1 is 23.8 inch capacitive touch screen overlay for multi-touch computers. It consists of an ITO technology sensor glass and a chemically strengthened cover glass. They are bonded together with a optically clear adhesive tape. Such glass-on-glass structure is stong and anti-scratch, and anti-vandal.
For public touch computers, like information kiosks, ticket kiosks, vending machines and etc, we can customize the cover glass to meet the public touch screen standard. Usually, the front glass is recommended to be from 3mm to 6mm to meet different IK ratings by different standard. The touch screen supports cover glass thickness up to 8mm.
For outdoor applications, especially for devices under direct sunlight, the anti-glass treatment is remmended for the touch screen cover glass. Another method is to improve the brightness of TFT-LCD. Sure, it will be better if you can take the factors together. The anti-glare is to scatter the strong light and the high brightness is reduce the light difference.
The advantages of capacitive screen are hardness, high light transmittance, smooth handling, high reliability, customization and etc.
1. Hard and wear-resistant.
The surface cover of capacitive screen is tempered glass, and its surface is very hard, and its hardness can reach more than 6H.
2. High light transmittance.
Capacitive screen is not only used for operation, but more importantly, it is used to watch and enjoy the contents of the screen.
The transmittance of glass capacitive screen is as high as 85%.
3. Smooth touch.
The glass screen is very smooth, and the fingers are like flowing water, which makes the manipulation feel very smooth.
4. Personalized customization.
The screen can be customized according to your own needs, such as text, logo and etc.
5. More accurate than other touch technologies because its reaction speed is less than 10ms.
6. Unique widescreen design can bring different visual impact.
Package and delivery
1, Blister tray or poly foam→carton.
2, 100% Inspection before Shipment. Every stage of the production process pays great attention to avoiding mistakes, and we conduct 100% inspection on the cleanliness of appearance and function. What we are most concerned about is that every touch screen shipped from our warehouse must meet the requirements of customers.
3, Details make a difference. Perfect details make our products perfect. Our analog resistive touch screen and projection capacitive touch screen have smooth screen surface, smooth lines, uniform thickness and linearity below 1.5%. The edge is smooth and the tolerance is below 0.1mm; The minimum width and line spacing of silver is 0.15mm.Screen printing, lamination, cutting, FPC bonding, etc. They are operated by automated machines and skilled workers. Almost everything is under our control.
1. How about the minimum quantity of my order?
2. Can I get a lower price if I order in large quantities?
Of course! Welcome to email us to discuss relevant details.
3. How long is the delivery date?
It’s generally 20 working days.
4. Do you have your own factory?
We are a real manufacturer of electronic products. We have dust-free workshops and special equipment.
5. How do you control the quality?
This is very strict. We have passed the GB/T 19001-2016 idt ISO9001:2015 standard certification.
6. How long is the shelf life of the product?
Generally, it is one year. If there are special requirements, it can be 2-3 or 5 years.
7. Have you ever exported to a foreign country?
Yes! Our customer base covers Europe, South America, North America, Middle East, Oceania and other parts of the world.
