23.8 Inch ILI2510 Multi Touch Panel Screen For All In One Computers

23.8 Inch Multi Touch Panel Screen with ILI2510 for All In One Computers, Vending Machines, Industrial Touch Monitors

The advantages of capacitive screen are hardness, high light transmittance, smooth handling, high reliability, customization and etc.

1. Hard and wear-resistant.

The surface cover of capacitive screen is tempered glass, and its surface is very hard, and its hardness can reach more than 6H.

2. High light transmittance.

Capacitive screen is not only used for operation, but more importantly, it is used to watch and enjoy the contents of the screen.

The transmittance of glass capacitive screen is as high as 85%.

3. Smooth touch.

The glass screen is very smooth, and the fingers are like flowing water, which makes the manipulation feel very smooth.

4. Personalized customization.

The screen can be customized according to your own needs, such as text, logo and etc.

5. More accurate than other touch technologies because its reaction speed is less than 10ms.

6. Unique widescreen design can bring different visual impact.

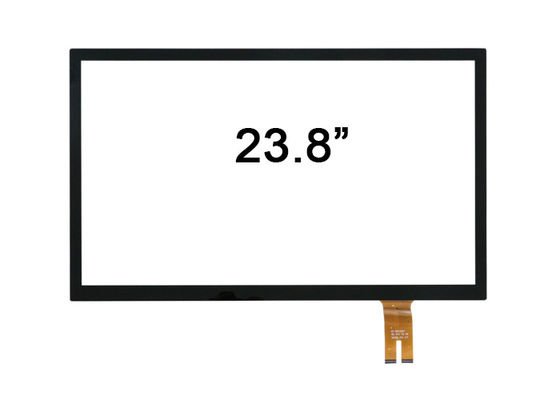

TPS2388133V1 is a 23.8 inch USB interface multi-touch projected capacitive (PCAP) touchscreen. Touchscreen sensor is ITO glass. And the cover glass is strengthened front glass with 6H surface hardness. They are optically bonded together with optical clear adhesive. It works with a controller board connecting to computer mainboard via USB cable. It's plug and play, compatile with Windows, Android, Linux and Mac operating systes. The cover glass thickness is 3mm with physcial strengthening technology, which makes it strong and anti-vandal, anti-scratch, and smooth touch. 23.8 inch PCAP touch screen overlay is one of the standard modes that we manufacture and supply. Usually, they are off-the-shelf. Feel free to contact us to quote, to check the stock quantity, to discuss your idea on it. We support customizing the cover glass, including the surface treatment, like anti-glare, anti-reflective, anti-backteria, anti-finger-print, and customizing the color and dimension, and customizing the FPC position and length.

Package and delivery

1, Blister tray or poly foam→carton.

2, 100% Inspection before Shipment. Every stage of the production process pays great attention to avoiding mistakes, and we conduct 100% inspection on the cleanliness of appearance and function. What we are most concerned about is that every touch screen shipped from our warehouse must meet the requirements of customers.

3, Details make a difference. Perfect details make our products perfect. Our analog resistive touch screen and projection capacitive touch screen have smooth screen surface, smooth lines, uniform thickness and linearity below 1.5%. The edge is smooth and the tolerance is below 0.1mm; The minimum width and line spacing of silver is 0.15mm.Screen printing, lamination, cutting, FPC bonding, etc. They are operated by automated machines and skilled workers. Almost everything is under our control.

FAQ

1. How about the minimum quantity of my order?

One pcs.

2. Can I get a lower price if I order in large quantities?

Of course! Welcome to email us to discuss relevant details.

3. How long is the delivery date?

It’s generally 20 working days.

4. Do you have your own factory?

We are a real manufacturer of electronic products.  We have dust-free workshops and special equipment.

5. How do you control the quality?

This is very strict. We have passed the GB/T 19001-2016 idt ISO9001:2015 standard certification.

6. How long is the shelf life of the product?

Generally, it is one year. If there are special requirements, it can be 2-3 or 5 years.

7. Have you ever exported to a foreign country?

Yes! Our customer base covers Europe, South America, North America, Middle East, Oceania and other parts of the world.
