12.1 Inch Square (Aspect Ratio 4:3) Touch Screen For Smart Advertising Machine With IIC And USB Interface

12.1 Inch Square (Aspect Ratio 4:3) Touch Screen For Smart Advertising Machine With IIC And USB Interface

Specifications:

OD(Outline Dimension):269.3(L)×211.4(W)×2.9(T)mm

VA(Viewing Area): 246.16(L)×184.72(W)mm

IC: ILITEK2511C3P1V1 / SIS9509 (RX32,TX23)

Type: COB

Structure:Strengthened Cover Glass+ITO Sensor Glass

Surface Hardness: above 6H

Transmittance: above 85%

Cover Glass Thickness: 2mm

Sensor Glass Thickness: 0.7mm

Storage Temperature:-20℃-+70℃,≤85%RH

Operating Temperature:-30℃-+80℃,≤85%RH

Description:

1. Structure

This module TPS1219023 is a projected capacitive (PCAP) touchscreen panel. It is glass-on-glass tructure. The top layer is chemically strengthend cover glass and the touchscreen sensor glass is ITO technology via etching and laser process for the ITO layout and silver ink traces. The top layer glass is optically bonded with the sensor glass by optical clear adhesive. Such structure makes it anti-vandal and high stransmittance.

2. Providing Touch Panels Since 2009

As a PCAP touchscreen manufacturer, we provide customized projected capacitive touch panels and resistive touch panels. Mostly, we are able to offer touch panel solutions in a short time.Currently, we have been supplying touch panels to clients domestic and abroad.

3. PRC National Standard High Quality Manufacturer

Audited by TUV, our factory complies with the national standard of high quality manufacturer through the following aspects: genuine manufacturer, dedicated export team, research and development capability, trustworthiness and reputation, high quality products, considerable company size, social and environmental responsibility, customer service capability.

In 2010, we passed ISO 9001:2008 International Management System and ISO 14001:2004 + Cor 1:2009 Environmental Management System.

4. High Stability of Staff Makes High Stability of Quality

Over 60% workshop workers have been working in our company since 3 years ago and it is more than 80% of the management. The philosophy of people-oriented management makes all staff like one.

Additionally, our sales team are able to offer 4 languages service, including Japanese, Korean, English and Chinese. And we are always trying our best to support our clients.

5. Detail Makes Different

Perfect details make our products perfect. Silkscreen of our analogue resistive touch panels and projected capacitive touch panels has smooth surface, smooth line, uniform thickness and the linearity is below 1.5%; the edge is smooth with tolerance below 0.1mm; minimum width of silver line and distance between lines is 0.15mm.

Silk-printing, laminating, cutting, FPC bonding etc. are all operated by automatic machines and skill-experienced workers. Almost everything is under our control.

6. 100% Inspection

Every stage of production process is focused on a lot to avoid mistakes and regarding the cleanliness of appearance and function, we carry out 100% inspection. What we care most is that each piece touch panel delivered from our warehouse has to meet our clients’ requirements.

7. Safe Packaging and Delivery

Up till now, every order of our touch panels has reached our clients abroad successfully without any damage. We pack touch panels with blister tray or foam box as requested first, certainly, there is a piece of protective film on it; and second, put into a bag and make it vacuum; lastly, put into a carton box.

Applications:

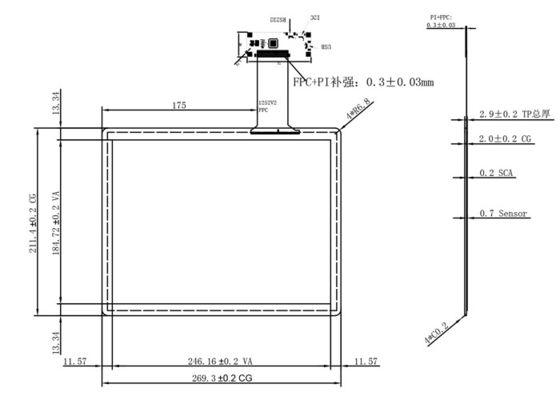

Drawing for Reference:
