|Place of Origin:||China|
|Minimum Order Quantity:||1 piece|
|Price:||USD70 ~ USD120 per piece|
|Packaging Details:||foam→ carton box or wooden box|
|Delivery Time:||20 working days|
|Supply Ability:||Production of 500pcs per day|
|Cover Glass:||12mm Toughened Glass||Surface Hardness:||6H|
|Touch Sensor:||ITO Technology||Touch IC:||EETI|
4:3 Thick Glass Touch Screen,
12.1 Inch Thick Glass Touch Screen,
12.1 Inch Touch Screen Capacitive

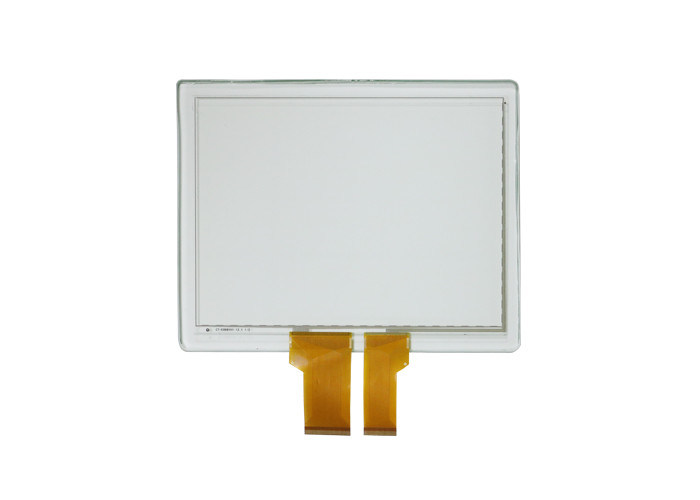

12.1 Inch 4:3 Capacitive Touch Screen with 12mm Toughened Cover Glass
TPS1218991 is diagonally 12.1 inch projected capacitive (PCAP) touchscreen sensor with a 6H surface hardness cover glass bonded on. The touch controller board has USB interface, IIC interface or RS232 interface for option. The controller board is supplied by EETI, which mainly supports industrial field. It's plug and play with USB interface. It is compatile with Windows, Android, Linux and Mac operating systems.
The cover glass thickness is 12mm with physical strengthening technology, which makes it strong and anti-vandal, anti-scratch, and smooth touch. This touchscreen is recommened to use on the devices which requires anti-vandal, as the strong cover glass is able to pass IK10. It can be used in public areas or some special applications which requires IK10 or even higher requirement of anti-vandal.
Some Advantages of PCAP Touch
The advantages of capacitive screen are hardness, high light transmittance, smooth handling, high reliability, customization and etc.
1. Hard and wear-resistant.
The surface cover of capacitive screen is tempered glass, and its surface is very hard, and its hardness can reach more than 6H.
2. High light transmittance.
Capacitive screen is not only used for operation, but more importantly, it is used to watch and enjoy the contents of the screen.
The transmittance of glass capacitive screen is as high as 85%.
3. Smooth touch.
The glass screen is very smooth, and the fingers are like flowing water, which makes the manipulation feel very smooth.
4. Personalized customization.
The screen can be customized according to your own needs, such as text, logo and etc.
5. More accurate than other touch technologies because its reaction speed is less than 10ms.
6. Unique widescreen design can bring different visual impact.
Package and delivery
1, Blister tray or poly foam→carton.
2,100% Inspection before Shipment. Every stage of the production process pays great attention to avoiding mistakes, and we conduct 100% inspection on the cleanliness of appearance and function. What we are most concerned about is that every touch screen shipped from our warehouse must meet the requirements of customers.
3, Details make a difference. Perfect details make our products perfect. Our analog resistive touch screen and projection capacitive touch screen have smooth screen surface, smooth lines, uniform thickness and linearity below 1.5%. The edge is smooth and the tolerance is below 0.1mm; The minimum width and line spacing of silver is 0.15mm.Screen printing, lamination, cutting, FPC bonding, etc. They are operated by automated machines and skilled workers. Almost everything is under our control.
1. How about the minimum quantity of my order?
2. Can I get a lower price if I order in large quantities?
Of course! Welcome to email us to discuss relevant details.
3. How long is the delivery date?
It’s generally 20 working days.
4. Do you have your own factory?
We are a real manufacturer of electronic products. We have dust-free workshops and special equipment.
5. How do you control the quality?
This is very strict. We have passed the GB/T 19001-2016 idt ISO9001:2015 standard certification.
6. How long is the shelf life of the product?
Generally, it is one year. If there are special requirements, it can be 2-3 or 5 years.
7. Have you ever exported to a foreign country?
Yes! Our customer base covers Europe, South America, North America, Middle East, Oceania and other parts of the world.
