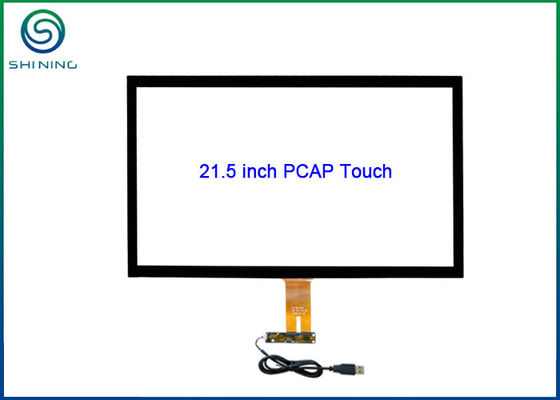

PCAP Monitor Touch Panel Screen 21.5 Inch With USB Controller USB Cable

PCAP Monitor Touch Panel Screen 21.5 Inch With USB Controller USB Cable

  • PCAP Monitor Touch Panel Screen 21.5 Inch With USB Controller USB Cable
  • PCAP Monitor Touch Panel Screen 21.5 Inch With USB Controller USB Cable
PCAP Monitor Touch Panel Screen 21.5 Inch With USB Controller USB Cable
Product Details:
Place of Origin: China
Brand Name: KENSHIN
Certification: ROHS
Model Number: CT-C8389-21.5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 32~50usd/piece
Packaging Details: carton box
Delivery Time: 15 working days after receiving your deposit or L/C
Payment Terms: T/T
Supply Ability: 800pcs per day
Contact Now
Detailed Product Description
Size: 21.5 Inch Type: USB Interface PCAP
Viewing Area: 476.64x268.11mm Outline Dimension: 506x303mm
IC Controller: ILI2302 Surface Hardness: 6H
Thickness: 2.9mm Layers: G+G
Material: Glass Transmittance: 85%
High Light:

PCAP Touch Panel Screen

,

Touch Panel Screen 21.5 Inch

,

PCAP Touch Monitor Screen



21.5 Inch PCAP Touch Glass Kit with USB Controller and USB Cable for Touch Monitors



Product Description


CT-C8389 is a 21.5 inch projected capacitive touch panel, 2mm strengthened protective glass optically bonded on the 0.7mm sensor glass, driven by a 5V USB controller ILI2302 from ILITEK. It supports 10-point touch, and is compatible with Windows, Linux and Android operating system.





Size 21.5 inch
IC Controller ILI2302, Compatible with ILI2510
Structure G+G
Outline Dimension 506x303mm

Viewing Area

476.64x268.11mm
Transmittance >85%
Thickness 2.9mm
Surface Hardness 6H
Interface Type USB
Supply Voltage 5V DC
Chattering Time <10 MS
Operating Temperature -10℃-60℃
Storage Temperature

-10℃-65℃



21.5 inch PCAP touch - dimension drawing



21.5 inch PCAP touch glass



21.5 inch capacitive touch panel



21.5" capacitive touch






Why Choose Us?



1. Providing Touch Panels Since 2009



We are a manufacturer of touch screens with custom ability, supplying:

(1) Projected Capactive (PCAP) Touch Screen, including glass-on-glass solution, glass-on-film solution, plastic-on-film solution;

(2) Resistive Touch Screen, including 4-wire and 5-wire resistive touch screen;

(3) TFT-LCD Module, including ordinary displays from AUO, BOE, Innolux, Tianma, LG and etc, and high brightness LCD and stretched LCD;

(4) TFT-PCAP Module with tape-bonding or optical-bonding technology

(5) Intelligent Display

(6) Protective Glass



Our touch screens have already been working in more than 20 countries all over the world, like USA, Canada, UK, German, Denmark, France, Spain, Brazil, Columbia, India, Tailand and etc.



2. ISO Audited Factory



From the year of 2010, we excuted ISO international management system and environmental management system.



ISO Audited Touch Screen Manufacturer



3. High Stability of Staff Makes High Stability of Quality



Over 60% workshop workers have been working in our company since 3 years ago and it is more than 80% of the management. The philosophy of people-oriented management makes all staff like one. Additionally, our sales team are able to offer 3 languages service, including English, Japanese and Chinese. And we are always trying our best to support our clients.



4. Dust-free Workshops and Specialized Equipment



In the line of manufacturing touch panels, dust-free workshops and specialized equipment can basically guarantee the quality, especially the cleanliness of both resistive touch panels and capacitive touch panels.



10000-class dust-free workshops cover an area of over 2000 square meters, in which more than 200 square meters is equipped with100-class dust-free workshops. Moreover, some key equipment is introduced from Taiwan, such as IR ovens, Laser machines, etc.



PCAP Monitor Touch Panel Screen 21.5 Inch With USB Controller USB Cable 5



PCAP Monitor Touch Panel Screen 21.5 Inch With USB Controller USB Cable 6



PCAP Monitor Touch Panel Screen 21.5 Inch With USB Controller USB Cable 7





5. Brand Raw Materials Only



In order to produce satisfactory touch panels, we only use brand materials. In this case, our production has high efficiency.



Raw Material Supplier
ITO Film CSG HOLDING
ITO Glass CSG HOLDING OR TOKEN
Cover Lens(Glass) AGC GROUP
Conductive Silver Paste ASAHI OR INKTECH
Printing Ink SEIKO
OCA 3M OR LG
IC Controller ILITEK, EETI, Goodix, Focaltech
ACF SONY OR HITACHI


6. Detail Makes Different



Perfect details make our products perfect. Silkscreen of our analogue resistive touch panels and projected capacitive touch panels has smooth surface, smooth line, uniform thickness and the linearity is below 1.5%; the edge is smooth with tolerance below 0.1mm; minimum width of silver line and distance between lines is 0.15mm.



Silk-printing, laminating, cutting, FPC bonding etc. are all operated by automatic machines and skill-experienced workers. Almost everything is under our control.



7. 100% Inspection before Shipment



Every stage of production process is focused on a lot to avoid mistakes and regarding the cleanliness of appearance and function, we carry out 100% inspection. What we care most is that each piece touch panel delivered from our warehouse has to meet our clients’ requirements.






Some Applications



Touch-Function Products LCD Module
Consumer Devices PDA, MP3, MP4, PMP, Gaming, Web PAD, etc.
Automotive, Medical, Industrial Industrial Controls, Equipment Panels, Medical Device, GPS Navigation, etc.
House-hold Electronics, Financial, Entertainment System, Office Equipment POS, ATM, Self-Serve Kiosk, Access Control, Door Phone, Refrigerator, Microwave Oven, Copier, Fax, Disinfector, etc.






FAQ



1. How is the price?
We are a factory in DongGuan, China. Normally, factory price is better than those traders and larger quantity has better price.



2. How long is the warranty period?
Generally the warranty period is one year. It could be prolonged to 2 years or 3 years on requrest.



3. Have you ever exported to foreign countries?
We have exported to North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe, South Asia, ect.



4. Could we place an order as OEM to produce under our own brand?

Yes, our company accepts OEM and ODM orders.



5. Do you have a factory?

Yes, welcome to visit and audit us anytime.



6. How about the delivery time?

15 - 20 working days for our standard products. For the customized products, it may be the same or slightly longer.
