|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Blister tray or poly foam→vacuum bag→carton|
|Delivery Time:||15 working days after receiving your deposit or L/C|
|Supply Ability:||1000pcs per day|
|Size:||7.0 Inch||Type:||Touch Glass|
|Structure:||G + G||ITO Glass:||0.7mm|
|Hardness:||Above 6H||LCD Resolution:||800*480|
PCT Touch Panel Screen,
Touch Panel Screen PCAP,
Projected Capacitive Touch Panel

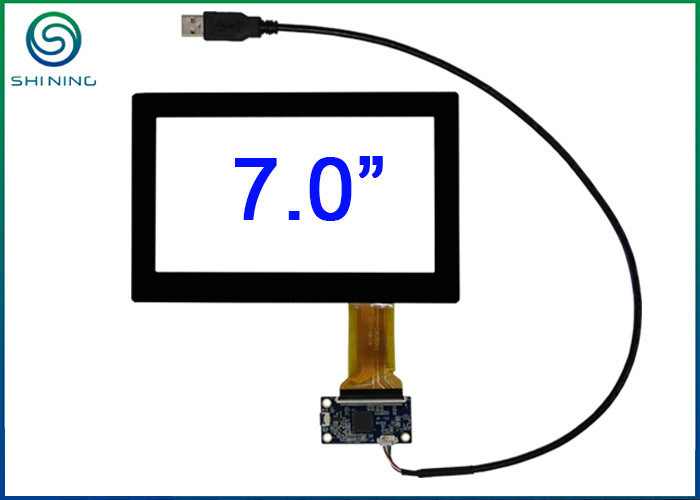

7" USB Interface Multi Touch Panel Glass With Projected Capacitive Technology PCT
|Cover Glass Outline Dimension||182.07*117.60mm|
|Sensor Glass Viewing Area||155.08*86.92mm|
|Touch Life Span||>3,000,000 times|
|Scoring Life Expectance||>1,000,000 times|
|Supply Voltage||3.3V DV, 5V DC|
|Chattering Time||<10 MS|
|Air Gap between TP and LCD||>0.3mm|
CT-C8050-7.0 is 7 inch projected capacitive (PCAP) touchscreen panel. It is widely used for industrial panel PCs, handheld devices, robot touch panels, touch devices on vehicle and etc. It features in USB interface which supports calibration-free and plug-and-play, compatible with Linux, Windows, Android and Mac operating systems. Its aspect ration is 16:9 which is also called 7" widescreen and goes well with 16:9 LCD panels, like AT070TN92, AT070TN94, AT070TN90, TM070RDH13, HSD070IDW1-G00, HSD070IDW1-D00 and so on.
1. PRC National Standard High Quality Manufacturer, Providing Touch Panels Since 2009
As a manufacturer, we provide customized touch panels, including 4-wire resistive touch panel, 5-wire resistive touch panel, capacitive touch panel, digital touch panel etc. Mostly, we are able to offer touch panel solutions in a short time.
Currently, we have been supplying touch panels to clients domestic and abroad. Samsung and Nintendo are two well-known companies of them.
Audited by TUV, our factory complies with the national standard of high quality manufacturer through the following aspects: genuine manufacturer, dedicated export team, research and development capability, trustworthiness and reputation, high quality products, considerable company size, social and environmental responsibility, customer service capability.
In 2010, we passed ISO 9001:2008 International Management System and ISO 14001:2004 + Cor 1:2009 Environmental Management System.
2. High Stability of Staff Makes High Stability of Quality
Over 60% workshop workers have been working in our company since 3 years ago and it is more than 80% of the management. The philosophy of people-oriented management makes all staff like one.
Additionally, our sales team are able to offer 4 languages service, including Japanese, Korean, English and Chinese. And we are always trying our best to support our clients.
3. Dust-free Workshops and Specialized Equipment
In the line of manufacturing touch panels, dust-free workshops and specialized equipment can basically guarantee the quality, especially the cleanliness of both resistive touch panels and capacitive touch panels.
10000-class dust-free workshops cover an area of over 2000 square meters, in which more than 200 square meters is equipped with100-class dust-free workshops. Moreover, some key equipment is introduced from Taiwan, such as IR ovens, Laser machines, etc.
4. Brand Raw Materials Only
In order to produce satisfactory touch panels, we only use brand materials. In this case, our production has high efficiency.
|ITO Film||CSG HOLDING|
|ITO Glass||CSG HOLDING OR TOKEN|
|Cover Lens(Glass)||AGC GROUP|
|Conductive Silver Paste||ASAHI OR INKTECH|
|OCA||3M OR LG|
|ACF||SONY OR HITACHI|
5. Detail Makes Different
Perfect details make our products perfect. Silkscreen of our analogue resistive touch panels and projected capacitive touch panels has smooth surface, smooth line, uniform thickness and the linearity is below 1.5%; the edge is smooth with tolerance below 0.1mm; minimum width of silver line and distance between lines is 0.15mm.
Silk-printing, laminating, cutting, FPC bonding etc. are all operated by automatic machines and skill-experienced workers. Almost everything is under our control.
6. 100% Inspection
Every stage of production process is focused on a lot to avoid mistakes and regarding the cleanliness of appearance and function, we carry out 100% inspection. What we care most is that each piece touch panel delivered from our warehouse has to meet our clients’ requirements.
7. Safe Packaging and Delivery
Up till now, every order of our touch panels has reached our clients abroad successfully without any damage. We pack touch panels with blister tray or foam box as requested first, certainly, there is a piece of protective film on it; and second, put into a bag and make it vacuum; lastly, put into a carton box.
|Touch-Function Products||LCD Module|
|Consumer Devices||Mobile Phone, Tablet PC, PDA, MP3, MP4, PMP, Gaming, Web PAD, etc.|
|Automotive, Medical, Industrial||Industrial Controls, Equipment Panels, Medical Device, GPS Navigation, Rearview Mirror Camera, etc.|
|House-hold Electronics, Financial, Entertainment System, Office Equipment||POS, ATM, Self-Serve Kiosk, Access Control, Door Phone, Refrigerator, Microwave Oven, Copier, Fax, Disinfector, etc.|
