AG 17.3 Inch Anti Glare Touch Screen Projected Capacitive Touch Glass Multi Touch

AG 17.3 Inch Anti Glare Touch Screen Projected Capacitive Touch Glass Multi Touch

  • AG 17.3 Inch Anti Glare Touch Screen Projected Capacitive Touch Glass Multi Touch
  • AG 17.3 Inch Anti Glare Touch Screen Projected Capacitive Touch Glass Multi Touch
AG 17.3 Inch Anti Glare Touch Screen Projected Capacitive Touch Glass Multi Touch
Product Details:
Place of Origin: China
Brand Name: KENSHIN
Model Number: TPS1738747
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD42 ~ USD80 per piece
Packaging Details: foam→carton
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: Production of 1000pcs per day
Contact Now
Detailed Product Description
Cover Glass: AG Glass Surface Hardness: 6H
Touch Sensor: ITO Glass Touch IC: ILI2510, SIS9515
Response Time: 10ms Application: Industrial
Touch Points: 10 Structure: G+G
High Light:

17.3 Inch Anti Glare Touch Screen

,

AG Anti Glare Touch Screen

,

Projected Capacitive Touch Glass

17.3 Inch Anti-glare Multi-touch Touch Screen With Projected Capacitive Technology

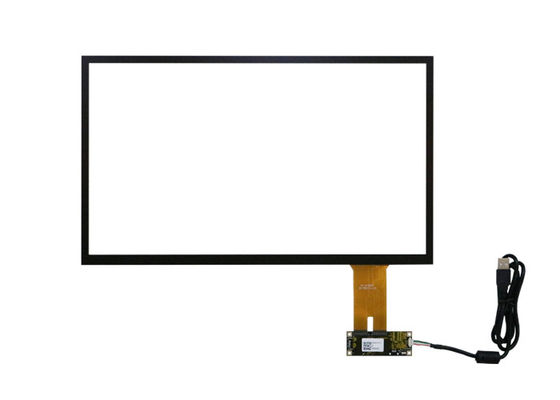

TPS1738747 is diagonally 17.3 inch multi-touch projected capacitive touchscreen (PCT) sensor with a 6H surface hardness cover glass bonded on. It works with a controller board connecting to computer mainboard via USB cable. It's plug and play, compatile with Windows, Android, Linux and Mac operating systes. The cover glass thickness is 2mm with chemical strengthening technology, which makes it strong and anti-vandal, anti-scratch, and smooth touch.

AG 17.3 Inch Anti Glare Touch Screen Projected Capacitive Touch Glass Multi Touch 0

AG 17.3 Inch Anti Glare Touch Screen Projected Capacitive Touch Glass Multi Touch 1

This touchscreen is recommened to use outdoor and it works fine with direct sunlight or strong light, as the front glass of this capacitive touch screen has anti-glare treatment. It can effectively reduce the light reflection and make people feel comfortable in the strong light looking at the screen.

AG 17.3 Inch Anti Glare Touch Screen Projected Capacitive Touch Glass Multi Touch 2







Some Advantages of PCAP Touch



The advantages of capacitive screen are hardness, high light transmittance, smooth handling, high reliability, customization and etc.

1.Hard and wear-resistant.

The surface cover of capacitive screen is tempered glass, and its surface is very hard, and its hardness can reach more than 6H.

2.High light transmittance.

Capacitive screen is not only used for operation, but more importantly, it is used to watch and enjoy the contents of the screen.

The transmittance of glass capacitive screen is as high as 85%.

3.Smooth touch.

The glass screen is very smooth, and the fingers are like flowing water, which makes the manipulation feel very smooth.

4.Personalized customization.

The screen can be customized according to your own needs, such as text, logo and etc.

5.More accurate than other touch technologies because its reaction speed is less than 10ms.

6.Unique widescreen design can bring different visual impact.



Package and delivery



1,Blister tray or poly foam→carton.

2,100% Inspection before Shipment. Every stage of the production process pays great attention to avoiding mistakes, and we conduct 100% inspection on the cleanliness of appearance and function. What we are most concerned about is that every touch screen shipped from our warehouse must meet the requirements of customers.

3,Details make a difference. Perfect details make our products perfect. Our analog resistive touch screen and projection capacitive touch screen have smooth screen surface, smooth lines, uniform thickness and linearity below 1.5%. The edge is smooth and the tolerance is below 0.1mm; The minimum width and line spacing of silver is 0.15mm.Screen printing, lamination, cutting, FPC bonding, etc. They are operated by automated machines and skilled workers. Almost everything is under our control.



FAQ



1.How about the minimum quantity of my order?

One pcs.

2. Can I get a lower price if I order in large quantities?

Of course! Welcome to email us to discuss relevant details.

3. How long is the delivery date?

It’s generally 20 working days.

4. Do you have your own factory?

We are a real manufacturer of electronic products.  We have dust-free workshops and special equipment.

                           AG 17.3 Inch Anti Glare Touch Screen Projected Capacitive Touch Glass Multi Touch 3



5. How do you control the quality?

This is very strict. We have passed the GB/T 19001-2016 idt ISO9001:2015 standard certification.

6. How long is the shelf life of the product?

Generally, it is one year. If there are special requirements, it can be 2-3 or 5 years.

7. Have you ever exported to a foreign country?

Yes! Our customer base covers Europe, South America, North America, Middle East, Oceania and other parts of the world.
