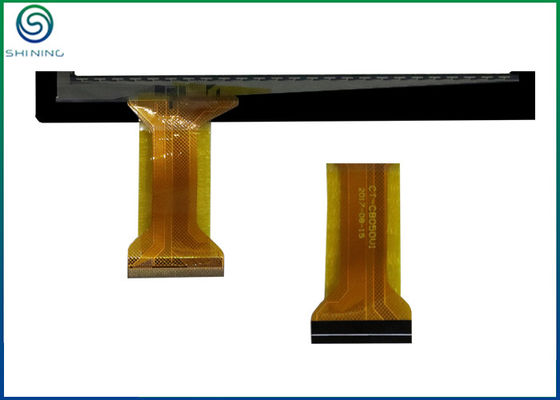

COB Type 7 Inch PCAP Touch Screen Projected Capacitive For Industrial Monitor

COB Type 7 Inch PCAP Touch Screen Projected Capacitive For Industrial Monitor

  • COB Type 7 Inch PCAP Touch Screen Projected Capacitive For Industrial Monitor
COB Type 7 Inch PCAP Touch Screen Projected Capacitive For Industrial Monitor
Product Details:
Place of Origin: China
Brand Name: KENSHIN
Certification: ROHS/REACH/CE
Model Number: CT-C8050-7INCH
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Blister tray or poly foam→vacuum bag→carton
Delivery Time: 15 working days after receiving your deposit or L/C
Supply Ability: 1000pcs per day
Contact Now
Detailed Product Description
Size: 7'' Type: PCAP
Structure: Cover Glass + Sensor Glass + FPC + Controller + USB Cable Surface Hardness: > 6H
Interface Type: USB LCD Type: DC
Chattering Time: < 10 Ms Cover Glass Thickness: 1.1mm
High Light:

COB Type PCAP Touch Screen

,

Industrial Monitor PCAP Touch Screen

,

Projected Capacitive 7 Inch Touch Screen



COB Type 7" Projected Capacitive Touch Screen For Industrial Monitor With USB Interface ILITEK 2511 Controller





Shining, the Right TP Manufacturer for You:



1. Established in Dongguang, China in 2008;

2. A high-quality touch panel manufacturer with custom ability, audited by TUV;

3. Supplying resitive touch panel and capacitive touch panel for 8 years;

4. Brand materials only;

5. 100% inspection to ensure the high quality of each piece to clients;

6. Praised by almost all of our clients both domestic and abroad;



Dimension Drawing:

COB Type 7 Inch PCAP Touch Screen Projected Capacitive For Industrial Monitor 0



Specifications:



Structure G + G + FPC + Controller + USB Cable
Aspect Ratio 16:9
Outline Dimention 182.07*117.60mm
View Area 155.08*86.92mm
Transmittance >85%
Cover Glass Thickness 1.1mm
Sensor Glass Thickness 0.7mm
Resolution 800*480
Interface Type USB
Supply Voltage 2.8V DV, 5V DC
Chattering Time <10 MS
Operating Temperature -10℃-60℃
Storage Temperature -20℃-70℃
LCD Type DC



PRC National Standard High Quality Manufacturer



Audited by TUV, our factory complies with the national standard of high quality manufacturer through the following aspects: genuine manufacturer, dedicated export team, research and development capability, trustworthiness and reputation, high quality products, considerable company size, social and environmental responsibility, customer service capability.



In 2010, we passed ISO 9001:2008 International Management System and ISO 14001:2004 + Cor 1:2009 Environmental Management System.



High Stability of Staff Makes High Stability of Quality



Over 60% workshop workers have been working in our company since 3 years ago and it is more than 80% of the management. The philosophy of people-oriented management makes all staff like one.



Additionally, our sales team are able to offer 4 languages service, including Japanese, Korean, English and Chinese. And we are always trying our best to support our clients.



Dust-free Workshops and Specialized Equipment

In the line of manufacturing touch panels, dust-free workshops and specialized equipment can basically guarantee the quality, especially the cleanliness of both resistive touch panels and capacitive touch panels.



10000-class dust-free workshops cover an area of over 2000 square meters, in which more than 200 square meters is equipped with100-class dust-free workshops. Moreover, some key equipment is introduced from Taiwan, such as IR ovens, Laser machines, etc.




Detail Makes Different

Perfect details make our products perfect. Silkscreen of our analogue resistive touch panels and projected capacitive touch panels has smooth surface, smooth line, uniform thickness and the linearity is below 1.5%; the edge is smooth with tolerance below 0.1mm; minimum width of silver line and distance between lines is 0.15mm.



Silk-printing, laminating, cutting, FPC bonding etc. are all operated by automatic machines and skill-experienced workers. Almost everything is under our control.



100% Inspection

Every stage of production process is focused on a lot to avoid mistakes and regarding the cleanliness of appearance and function, we carry out 100% inspection. What we care most is that each piece touch panel delivered from our warehouse has to meet our clients’ requirements.



Safe Packaging and Delivery

Up till now, every order of our touch panels has reached our clients abroad successfully without any damage. We pack touch panels with blister tray or foam box as requested first, certainly, there is a piece of protective film on it; and second, put into a bag and make it vacuum; lastly, put into a carton box.
