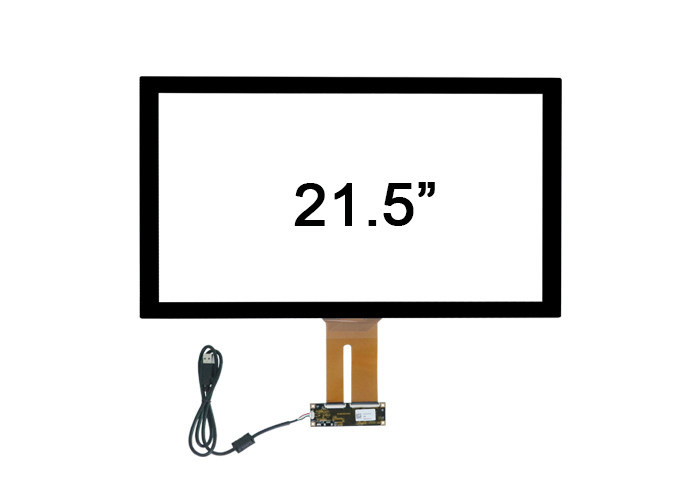

10ms 21.5 Inch Projected Capacitive Touch Panel For Touch Monitors

10ms 21.5 Inch Projected Capacitive Touch Panel For Touch Monitors

  • 10ms 21.5 Inch Projected Capacitive Touch Panel For Touch Monitors
  • 10ms 21.5 Inch Projected Capacitive Touch Panel For Touch Monitors
10ms 21.5 Inch Projected Capacitive Touch Panel For Touch Monitors
Product Details:
Place of Origin: China
Brand Name: KENSHIN
Model Number: TPS2158757V1
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD35 ~ USD64 per piece
Packaging Details: foam→carton
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: Production of 1000pcs per day
Contact Now
Detailed Product Description
Cover Lens: Tempered Glass Surface Hardness: 6H
Touch Sensor: ITO Touch Glass Touch Controller: ILI2510 PCBA
Touch Response: 10ms Application: Information Kiosks
Touch Points: 10 Points Structure: Front Glass On Sensor Glass
Border Color: Black Transmittance: 85%
High Light:

21.5 Inch Projected Capacitive Touch Panel


10ms Projected Capacitive Touch Panel


10ms capacitive touch overlay

21.5 Inch Projected Capacitive Touch Screen Sensor with Cover Glass for Touch Monitors


Dimension Drawing

10ms 21.5 Inch Projected Capacitive Touch Panel For Touch Monitors 0

Basic Specifications

Outline Dimension 525 x 312 mm Viewing Area 477 x269 mm
Cover Glass 2mm Tempered Glass Sensor Glass 0.7mm ITO Tehnology
Touch Controller  ILITEK ILI2510 Touch Points  multi-touch, up to 10 points


Customizing Service

TPS2158757V1 is one of our standard 21.5 inch projected capacitive touch panels. It is powered and driven by ILI2510 from ILITEK. It supports multi-touch, compatible with Windows, Android, and Linux operating systems. Exactly, the touch sensor is the standard model which is always off-the-shelf. The cover glass is customized according to clients' requirements. You can customize the dimension, size, thickness, shape, color and etc. You can also customize the glass type, for example, use a grey glass, or a mirror glass on top of the touch sensor. The coating on the cover glass is also for option, anti-glare, anti-reflective, anti-fingerprint, anti-backteria.


21.5 PCAP Touchscreen List of Ours


Size Model No. View Area Outline Dimension Touch controller
21.5 TPS2158553V1 477×269mm 525×312mm ILI2510 / SIS9515
21.5 TPS2158779V1 478×269mm 534×325mm ILI2510 / SIS9515
21.5 TPS2158919V1 477×269mm 496×292mm ILI2510 / SIS9515


TPS2158445V1 478×269mm 497×296mm ILI2510 / SIS9515


TPS2158879V1 478×269mm 534×325mm ILI2510 / SIS9515


Some Advantages of PCAP Touch


1.Hard and wear-resistant.

The surface cover of capacitive screen is tempered glass, and its surface is very hard. 3mm cover glass can pass IK08, and it is good for public applications.

2.High light transmittance: 85%

Capacitive screen is not only used for operation, but more importantly, it is used to watch and enjoy the contents of the screen.

The transmittance of glass capacitive screen is as high as 85%.

3.Smooth touch.

The glass screen is very smooth, and the fingers are like flowing water, which makes the operation feel very smooth.

4.Personalized customization.

The screen can be customized according to your own needs, such as text, logo, glass thickness, shape, and etc.

5.More accurate than other touch technologies because its reaction speed is less than 10ms.

6.Unique widescreen design can bring different visual impact.





1.How about the minimum quantity of my order?

It depends on the stock situation. Please contact us for more information.

2. Can I get a lower price if I order in large quantities?

Of course! Welcome to email us to discuss relevant details.

3. How long is the delivery date?

It’s generally 20 working days.

4. Do you have your own factory?

We are a real manufacturer of electronic products.  We have dust-free workshops and special equipment.

                           10ms 21.5 Inch Projected Capacitive Touch Panel For Touch Monitors 1


5. How do you control the quality?

This is very strict. We have passed the GB/T 19001-2016 idt ISO9001:2015 standard certification.

6. How long is the warranty of the product?

Generally, it is one year. If there are special requirements, it can be 2-3 or 5 years.
