|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||Blister tray or poly foam→vacuum bag→carton|
|Delivery Time:||15 working days after receiving your deposit or L/C|
|Supply Ability:||1000pcs per day|
|Size:||21.5"||Technology:||PCAP Touch Screen|
|Total Thickness:||2.9mm||Hardness:||> 6H|
|Bonding Technology:||UV Optical Bonding||Inteface:||USB|
|Chattering Time:||< 10 Ms||Touch Point:||10-point Touch|
21.5 Inch PCAP Touch Screen,
Front Glass PCAP Touch Screen,
USB Interface Touch Screen Panel Overlay

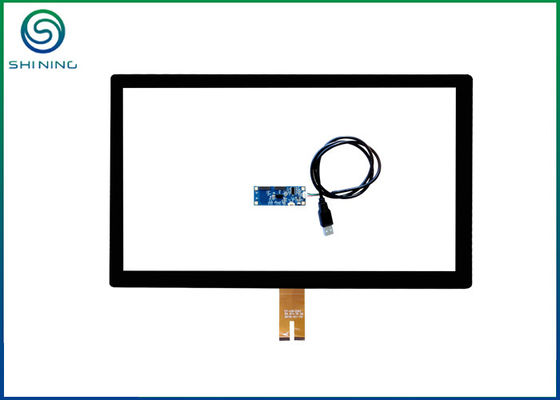

21.5 Inch PCAP Touch Screen Panel With Front Glass Optically Bonded on Touch Sensor Glass
Capacitive Touchscreen Overview
Capacitive technology doesn’t need pressure to activate the screen, therefore, capacitive touch is more sensitive. It works through body current induction. When a finger is on or close to touch screen surface, there forms one coupling capacitance between the user and the screen. Capacitive touch screen supports 2-point and multi-point touch, which realize the zoom function or something like that.
We also provide some custom touch screen, supporting touch with water on the front glass, even with a gloved-hand. Just let us know more about what you need.
Modle No.: CT-C8395-21.5
Technology: Projected Capacitive ITO Touch Screen
Controller: ILITEK 2510
Interface: USB, RS232 and IIC for option
OD ( Outline Dimension ):524*319mm
VA ( Viewing Area ):475*266mm
Sensor / Glass Thickness: 0.7mm
Cover Lens Thickness: 2mm
Total Thickness: 2.9mm
Response Time: < 10ms
Opertating Temperature: -10~+60 celsius degree
Storage Temperaure: -20~+65 celsius degree
All materials for this modle comply with the ROHS.
This is a hot-sale capacitive touch screen. We often have some in stock with competitive quality and price. It's a glass-on-glass capacitive touch screen. The 0.7mm touch sensor glass is UV optically bonded with a 2mm strengthed front glass. Surface hardness of it is 6H. Its total thickness is 2.9mm. It supports 10-finger touch, compatible with Android, Windows, Linux.
Some of Our Advantages
1. PRC National Standard High Quality Manufacturer
Audited by TUV, our factory complies with the national standard of high quality manufacturer through the following aspects: genuine manufacturer, dedicated export team, research and development capability, trustworthiness and reputation, high quality products, considerable company size, social and environmental responsibility, customer service capability. In 2010, we passed ISO 9001:2008 International Management System and ISO 14001:2004 + Cor 1:2009 Environmental Management System.
2. High Stability of Staff Makes High Stability of Quality
Over 60% workshop workers have been working in our company since 3 years ago and it is more than 80% of the management. The philosophy of people-oriented management makes all staff like one. Additionally, our sales team are able to offer 4 languages service, including Japanese, Korean, English and Chinese. And we are always trying our best to support our clients.
3. Dust-free Workshops and Specialized Equipment
In the line of manufacturing touch panels, dust-free workshops and specialized equipment can basically guarantee the quality, especially the cleanliness of both resistive touch panels and capacitive touch panels. 10000-class dust-free workshops cover an area of over 2000 square meters, in which more than 200 square meters is equipped with100-class dust-free workshops. Moreover, some key equipment is introduced from Taiwan, such as IR ovens, Laser machines, etc.
4. Detail Makes Different
Perfect details make our products perfect. Silkscreen of our analogue resistive touch panels and projected capacitive touch panels has smooth surface, smooth line, uniform thickness and the linearity is below 1.5%; the edge is smooth with tolerance below 0.1mm; minimum width of silver line and distance between lines is 0.15mm. Silk-printing, laminating, cutting, FPC bonding etc. are all operated by automatic machines and skill-experienced workers. Almost everything is under our control.
5. 100% Inspection
Every stage of production process is focused on a lot to avoid mistakes and regarding the cleanliness of appearance and function, we carry out 100% inspection. What we care most is that each piece touch panel delivered from our warehouse has to meet our clients’ requirements.
6. Safe Packaging and Delivery
Up till now, every order of our touch panels has reached our clients abroad successfully without any damage. We pack touch panels with blister tray or foam box as requested first, certainly, there is a piece of protective film on it; and second, put into a bag and make it vacuum; lastly, put into a carton box.
|Touch-Function Products||LCD Module|
|Consumer Devices||Mobile Phone, Tablet PC, PDA, MP3, MP4, PMP, Gaming, Web PAD, etc.|
|Automotive, Medical, Industrial||Industrial Controls, Equipment Panels, Medical Device, GPS Navigation, Rearview Mirror Camera, etc.|
|House-hold Electronics, Financial, Entertainment System, Office Equipment||POS, ATM, Self-Serve Kiosk, Access Control, Door Phone, Refrigerator, Microwave Oven, Copier, Fax, Disinfector, etc.|
For more details for this 21.5 inch projected capacitive touch screen panel, please download the drawingCT-C8395V1 21.5 Drawing 2019.01.18.pdf
